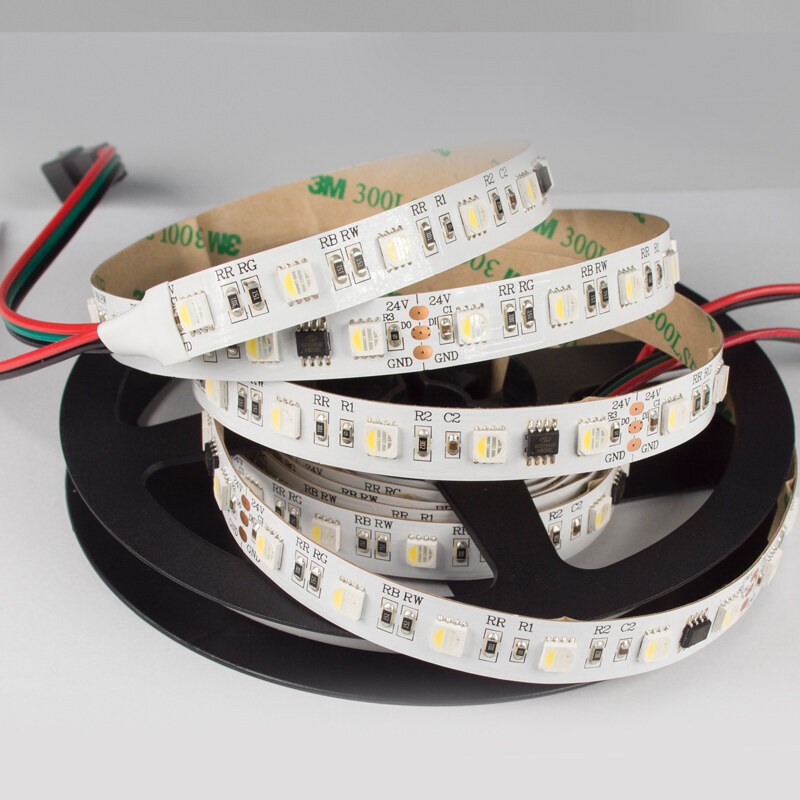

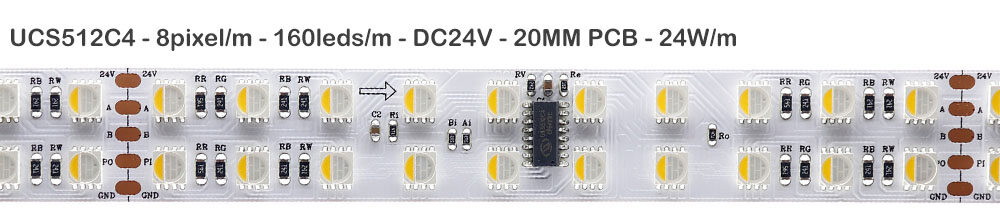

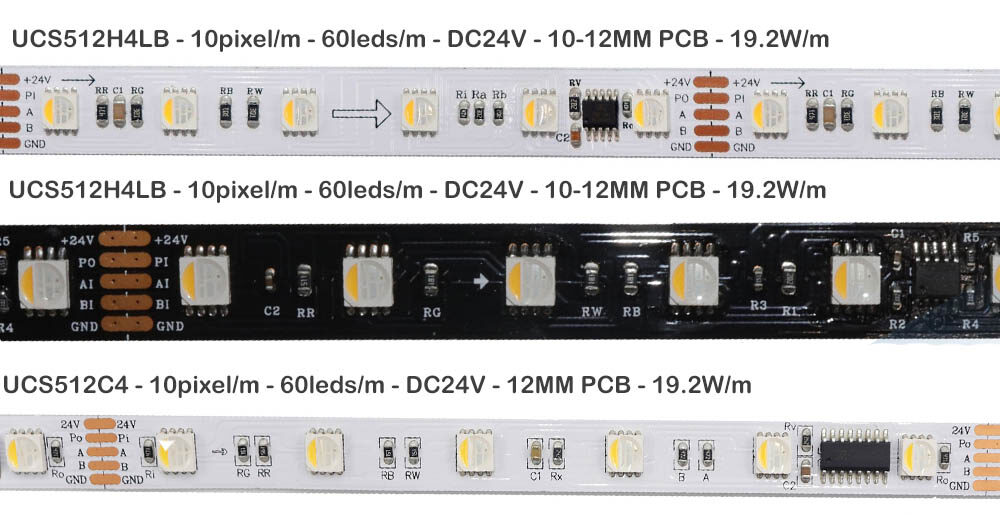

DMX512 DC24V RGBW LED Tapes

The Advantage of DMX512 RGBW:

• Parallel DMX512 signal could avoid RGBW LEDs color influenced by the failure of one light in serial connection.

• 8bit DMX512 signal, 256 grayscale and 16 bit DMX512 signal, 65536 grayscale are available to choose depends on case.

• Offer UCS512 IC chip or TM512 IC chip

• Offer Gama correction curve of 1.0 or Gama correction curve of 2.2

• Presence of white LED allows for higher brightness and more color mixing options.

• 4 colors LED allowing for tones that were previously hard to achieve with single RGB strip.

• White and RGB can be independently controlled to allows us to create bolder and more vibrant colors than with RGB alone.

Product Specifications:

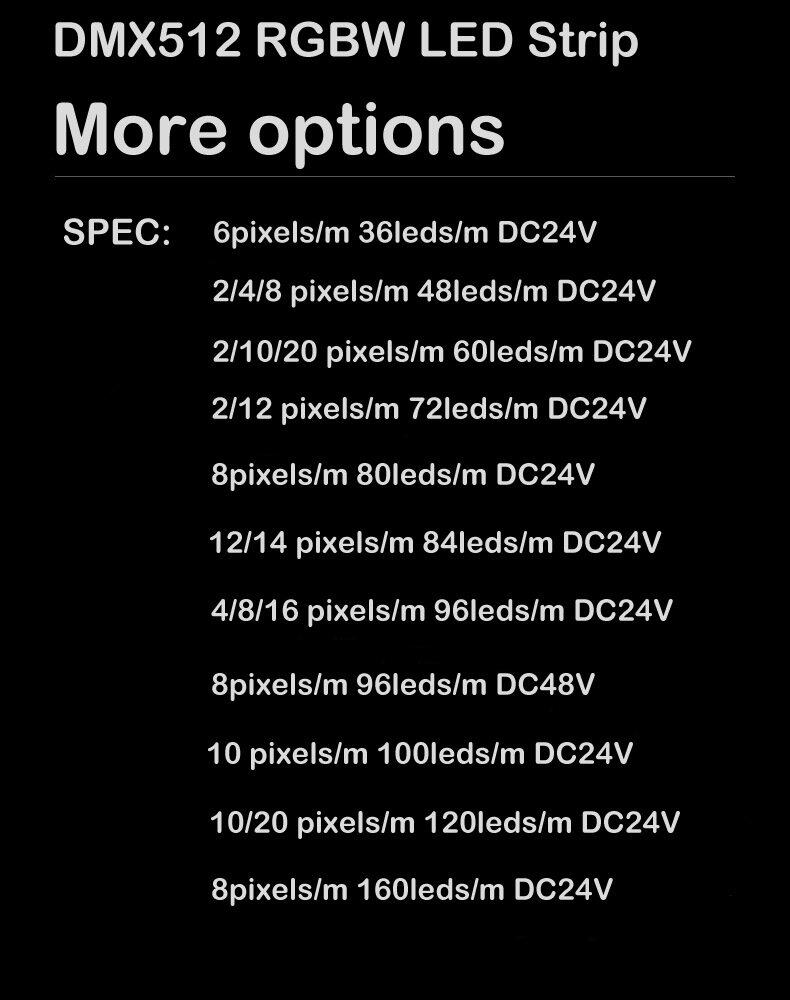

 More options.,

Application:

(1) Applicable for automobile and bicycle decoration, border or contour lighting

(2) Widely used for home decoration use, hotels, clubs, shopping malls

(3) Architectural decorative lighting, boutique atmosphere lighting

LED Strip Connection Diagram:

NOTE

1. The AC wiring must be connected to the ground wire to prevent electric shock.

2. The specification is only for regular quotation products, specific products have specified parameters, which are not within the scope of this specification.

The overload current of the main wire of the LED Strip is the sum of the currents of the sub-wires, so in actual engineering applications, the model of the main wire should be appropriately increased to prevent the wire from overheating and accidents.
